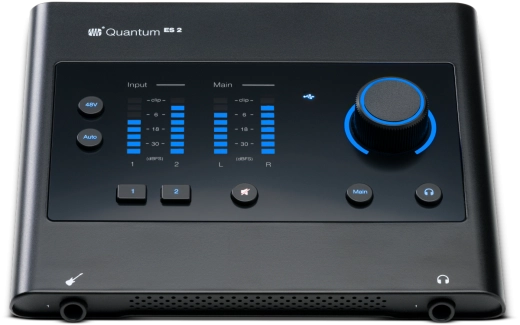

PreSonus - Quantum ES 2 USB-C Audio Interface
PreSonus - Quantum ES 2 USB-C Audio Interface is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
Capture your creativity with the Quantum ES 2. The next generation of PreSonus audio interfaces, the Quantum ES 2 is the culmination of nearly 30 years of PreSonus expertise, delivering pristine preamps and class-leading converters for self-made audio creators.
Features
• High Performance Signal Flow Custom low-latency drivers and low-noise converters.
• All-New MAX-HD Mic Preamps The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with +75 dB of gain range.
• Co-Developed with Fender® Front-facing instrument input engineered for guitarists by industry-leading experts.
• Professional Recording Software Included 6 months of Studio One+ with full access to Studio One, add-ons, and more.
• Auto Gain Dial in recording-ready levels, hassle-free.
• Universal Control App Full control and metering from your mobile device, desktop, or tablet.
Specifications
Electronics
Headphone Jack: One - 1/4" TRS Female Stereo
Connectivity: USB-C®
Voltage: 120V
Phantom Power: +48 VDC
Performance
Digital Audio Bit Depth: 24-bit
Digital Audio Dynamic Range: 120 dB
Inputs
Instrument Inputs Dynamic Range: 111 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Instrument Inputs Gain Range: 75 dB
Instrument Inputs Maximum Level: +15 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range: 114 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Line Inputs Gain Range: +/- 10 dB
Line Inputs Impedance: 10K Ohms
Line Inputs Maximum Level: +15 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion: 0.001% (1 kHz, Minimum Gain)
Microphone Input Connection Type: XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range: 113 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise: -129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)
Microphone Preamp Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Microphone Preamp Gain Control Range: 75 dB
Microphone Preamp Input Impedance: 1600 Ohms
Microphone Preamp Maximum Input Level: +14 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion: .001% (1 kHz, Minimum Gain)
Outputs
Headphone Outputs Dynamic Range: 111 db (a-weighted)
Headphone Outputs Frequency Response: 20 hz to 20 khz, +/- 0.2 db (unity gain, reference 1 khz)
Headphone Outputs Impedance Working Range: 22 ohms
Headphone Outputs Maximum Output: 7.5 dbu (50 ohms)
Headphone Outputs Total Harmonic Distortion: 0.02% (1 khz)
Main and Line Outputs Dynamic Range: 117 db (a-weighted)
Main and Line Outputs Frequency Response: 20 hz to 20 khz, +/- 0.1 db (unity gain, reference 1 khz)
Main and Line Outputs Maximum Level: +15 dbu (balanced)
Main and Line Outputs Impedance: 51 ohms
Main and Line Outputs Total Harmonic Distortion: 0.001% (1 khz, +4 dbu)
Main Outputs Connection Type: 1/4" trs female
Hardware
MIDI IO: 3.5 mm Type-B
