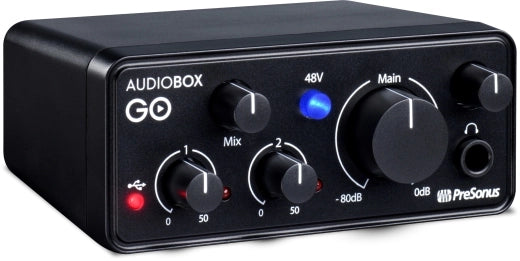

PreSonus - AudioBox GO Compact 2x2 USB Audio Interface

Ultra-affordable, surprisingly powerful, and small enough to fit in your pocket, AudioBox GO gives you all the connections you need to record on the move or in your home studio. Whether you're recording a guitar riff at rehearsal or a full-length solo album in your bedroom, you'll have all the tools you need to create like a pro, right from the start. Compatible with both computers and mobile devices, the AudioBox GO is perfect for anyone who wants to get started recording fast.

Connect anything and sound great.
The AudioBox GO features a PreSonus XMAX-L preamp, designed with over 25 years of recording-studio knowhow. Not only does it ensure that your recordings will sound clean and articulate with low noise, it also provides 50 dB of gain and +48v phantom power for professional XLR condenser microphones. The combo jack doubles as a line-level input that you can use to record keyboards, drum machines, and more! A dedicated Instrument input lets you connect an electric guitar or bass, so you can record guitar and vocals at the same time.

AudioBox GO Features
• Ultra-affordable, ultra-compact, versatile USB-C compatible audio interface for home and mobile recording with professional sound quality
• Recording Software included: Get started right away with Studio One Prime DAW recording software and Studio Magic software bundle including music tutorials, tons of sound samples and virtual instruments.
• Bus-Powered: AudioBox GO is powered by your connected USB-C device so no need for an additional power supply works great with both Apple and Android devices.
• Connect an instrument and a microphone at the same time: 1 TS instrument input to record guitar or bass and 1 XLR mic/line combo input to record vocals or a keyboard, drum machine, or other line-level instrument.
• Headphone Connection: 1 TRS 1/4 stereo headphone output with mix control lets you create a custom blend between your inputs and playback so you can monitor your recording with zero latency.
• Speaker Connections: 2 balanced TRS 1/4 main outputs for studio monitors or speakers.
• Professional Audio Quality: Studio-grade converters allow for up to 24-bit/96 kHz recording and playback assuring the highest quality possible.
• Professional XMAX-L Mic Preamp: Your microphone will sound its best thanks to this custom low-noise, high-headroom design with 50 dB of adjustable gain and switchable +48V phantom power for professional XLR condenser mics

Technical Specifications

Microphone Preamp
Type: XLR female, balanced (via Combo connector Input 1)
Frequency Response (+/-3.0 dB): 20 Hz to 20 kHz
Input Impedance (Balanced): 1.4k?
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.004%
Gain Control Range (+/- 1 dB): 50 dB (0 dB to +50 dB)
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): +10 dBu (+/- 0.5 dBu, min gain)
Phantom Power (+/-2 VDC): +48 VDC (+/-2 VDC)

Line Input
Type: 1/4" TRS female, balanced (via Combo connector Input 1)
Input Impedance: 750 k?
Max Input Level: +19 dB
Gain Control Range: 50 dB (-20 dB to +30 dB)

Instrument Input
Type: 1/4" TS female, unbalanced (Input 2)
Input Impedance: 750 k?
Max Input Level: +13 dB
Gain Control Range: 50 dB (0 dB to +50 dB)

Line Outputs
Type: 1/4" TRS female, impedance balanced
Frequency Response: 20 Hz to 20 kHz, +/-0.2 dB
Output Impedance: 51?
THD+N (1 kHz, 20 kHz BW, A-wtd): < 0.007%

Headphone Output
Type: 1/4" TRS active stereo
Maximum Output: 30 mW/ch. @ 60? Load
Frequency Response (+/-1.0 dB): 20 Hz - 20 kHz, +- 0.5 dB
THD+N (1 kHz, max gain, 20 kHz BW, A-wtd): < 0.08%
S/N Ratio (1 kHz, max gain, 20 kHz BW, A-wtd): 90 dB

Power
Type: Bus Powered

Digital Audio
Connection Type: USB 2.0 over USB-C compatible connection
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 90 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 102 dB
Bit Depth: 24
Reference Level for 0 dBFS: +10 dBu
Supported Sample Rates (kHz): 44.1, 48, 88.2, 96

Physical
Dimensions (H x D x W): 1.73 x 3.3 x 4.25" (44 x 84 x 108 mm)
Weight: 0.51 lb (0.24 kg)
