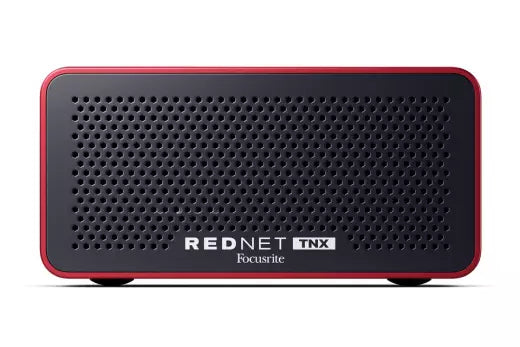

Focusrite - RedNet TNX Portable Low Latency Thunderbolt and Dante Interface
Focusrite - RedNet TNX Portable Low Latency Thunderbolt and Dante Interface is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
Designed for use in immersive audio, broadcast, post-production, or live sound, RedNet TNX brings the performance of RedNet to a more compact and portable format. RedNet TNX is a portable Dante® interface that delivers high-resolution, ultra-low latency Dante audio with 128x128 channels at 24-bit/192kHz straight out of the box. For larger systems, a paid Dante Ready™ upgrade unlocks 256x256 channels at 24-bit/96kHz - all via a single Thunderbolt™ connection for powerful and versatile audio workflows.
Installation is simple and secure, thanks to rack-mount compatibility, Sonnet ThunderLok™ support, and integrated M5 mounting points. Whether you're working in a fixed studio, an educational facility, or a mobile environment, TNX adapts to your setup.
Broadcast-ready AoIP support
RedNet TNX is fully compatible with AES67 and SMPTE ST 2110 (with DDM), making it suitable for broadcast facilities and production houses moving to IP-based audio systems. Its small footprint and Thunderbolt connectivity make it just as effective on location as it is in the control room.
Key Features
• 128x128 channels at 24-bit/192kHz with ultra-low latency
• Dante Ready™ upgrade: 256x256 channels at 24-bit/96kHz
• Thunderbolt™ connectivity for macOS and Windows (Intel & Apple Silicon)
• Dual Thunderbolt ports with 15W charging and daisy-chaining
• Dual Ethernet ports for switched or redundant Dante modes
• Audio and control over a single network cable
• AES67 and SMPTE ST 2110 compliant (DDM required)
• Rack-mountable with Sonnet ThunderLok™ support
• Compatible with RedNet Control software
What's in the box
- RedNet TNX unit
- 2m Thunderbolt™ 3 cable
- 2m cat6A Ethernet cable
- External DC power supply and cable
Specifications
Simultaneous Inputs & Outputs
128x128 (all sample rates)
256x256 (up to 96kHz) with a paid upgrade
Digital Performance
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
Dante Connectivity
2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
Driver Compatibility
Multi-client ASIO and WDM (Windows)
CoreAudio (Mac)
Rear Panel I/O
2x Thunderbolt™ 3 ports (Provide 15W of power)
2 x Sonnet ThunderLok™
2x Network Active LED indicators (Primary/Secondary)
2x Network Lock LED indicators (Primary/Secondary)
1x DC power inlet
1x Factory Reset button
Heat Performance
Max ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit
Miscellaneous
Exposed threads for rack shelf/cradle mounting
Dimensions
Width: 144mm (5.67")
Depth: 212.4mm (8.36")
Height: 71.6mm (2.82")
Weight: 1.49kg (3.3 lbs)
Power requirements
Powered by external DC power supply
