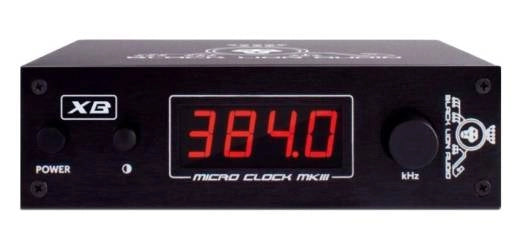

Black Lion Audio - Micro Clock MKIII XB Harmonically-Enhanced Word Clock
Black Lion Audio - Micro Clock MKIII XB Harmonically-Enhanced Word Clock is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The Micro Clock MKIII XB's small form factor and its ability to drive up to 1,000 feet of coaxial cable make it not only the perfect solution for improving the conversion quality of an audio interface, but also for re-clocking digital mixing consoles at live shows or houses of worship, and as the master word clock in large post-production or broadcast facilities. It can easily sync all of your digital gear together, even if it's located in different rooms, or different buildings!
With only 0.6pS RMS of jitter at the BNC outputs, it has less than one third of the jitter of the standard Micro Clock MKIII! It boasts incredibly accurate crystal oscillators and superior quality galvanic isolation, both of which contribute to the extraordinarily low jitter measurement.
FEATURES
Ultra-low jitter, harmonically-enhanced word clock signal generation
Dimmable frequency display
8 selectable sample rates (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, and 384kHz)
6 BNC outputs with dedicated output drivers for maximum isolation
RCA S/PDIF output
Optical S/PDIF output
AES output
Full & 1/2 rack removable rack ears
Locking frequency selector knob
SPECS
Jitter: 0.6pS RMS (BNC outputs)
Outputs:
• 6 BNC, 1 XLR AES, 1 RCA S/PDIF, 1 Optical S/PDIF (recommended max. cable length = 1,000ft of high quality, 75? coaxial cable)
• BNC: 75?, 5V unterminated
• RCA S/PDIF: 75 ?, unbalanced
• AES XLR: 110 ?, balanced
Clock Frequencies:
• BNC (kHz) 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384
• RCA S/PDIF & AES (kHz) 44.1, 48, 88.2, 96, 176.4, 192
• Optical S/PDIF (kHz) 44.1, 48, 88.2, 96
Power: 9VDC (6W power consumption)
Power connector: 2.1mm barrel connector with 5.5mm outer diameter (center pin positive)
Weight: 2.2lbs (approx. 1 kg)
Dimensions: 6.5"L x 6"W x 1.75"H (without rack ears installed)
