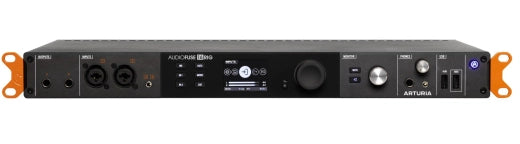

Arturia - AudioFuse 16Rig Studio Mastermind Audio Interface

Introducing an interface that lets you leave everything connected, route anything to anything, and be more creative with your projects.

A workhorse hub of connections and smart features designed to get the job done, no matter the complexity. A powerful, reliable production tool that can be molded to suit your audio setup, your workflow, and your sound.

AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, always sounding pristine, and always ready to go.

A standalone mixer
For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching.

Intricate audio routing
Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick "connect anything and everything" configuration.

Quantity, meet quality
Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it's red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.

Choose your workflow
Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig's settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.

Smart Design
Sometimes it's the little things that matter most. You need your gear to complement and enhance the way you work, and that's the driving force behind AudioFuse 16Rig.

See how every piece of the AudioFuse 16Rig puzzle fits together to deliver a dream interface for audio & music hardware lovers.

Premium FX Included
Every AudioFuse interface comes with an ever-evolving suite of creative plugins curated from the award-winning FX Collection. Refine any incoming audio with vintage studio tools, get experimental with contemporary effects, and embark on a journey through classic & modern sounds with Analog Lab.

Features
16 x TRS analog inputs
• Includes 2 x high-quality digitally-controlled preamps
• Inputs 3 & 4 also available as 3.5mm stereo input

12 x analog outputs
• Includes 8 x DC-coupled TRS line outputs
• Stereo monitor outputs
• 6.35mm front-panel outputs for reamping, dual-headphones

2 x ADAT in, 2 x ADAT out
• Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz

1 x MIDI in, 2 x MIDI out/thru
• 5-pin DIN connectors
• Route MIDI standalone

Low-latency USB-C connection
• Class-compliant MIDI
• 3 x USB hub connections

Specifications
Line Inputs
Input impedance: 20k? (symmetric), 10k? (asymmetric)
Maximum input level Rear: +24dBu, Front +22dBu
Pad mode Rear: -12dB, Front: -10dB
Frequency response 20Hz to 20kHz +/-0.06dB typical
Dynamic range 118dB (A-weighted)
THD+N @ 1kHz -113dB (A-weighted)

Line Outputs (DC coupled)
Output impedance: 240? balanced, 120? unbalanced
Maximum output level +24dBu
Frequency response 20-20kHz +/-0.04dB
Dynamic range 120dB (A-weighted)
THD+N @ 1kHz -106dB (A-weighted)
DC voltage amplitude +/-8.7V (asymmetrical)

Speakers Outputs
Output impedance: 240? balanced, 120? unbalanced
Maximum output level +20dBu
Frequency response 20-20kHz +/-0.02dB
Dynamic range 126dB (A-weighted)
THD+N @ 1kHz -114dB (A-weighted)

Instrument Input
Input impedance: 1.1M? asymmetric
Maximum input level: +20dBu
Gain range: 55dB
Pad mode: -10dB
Frequency response 20Hz to 20kHz: +/-0.1dB typical
Dynamic range 114dB (A-weighted)
THD+N @ 1kHz -105dB (A-weighted)

Microphone Preamps
Input impedance: 2,7k?
Maximum input level: +22dBu
Gain range: 55dB
Pad mode: -20dB
Equivalent Input Noise (EIN): -129.5dBu (A-weighted)
Frequency response 20Hz to 20kHz: +/-0.08dB
Dynamic range: 117dB (A-weighted)
THD+N @ 1kHz -110dB (A-weighted)

Phones
Output impedance: 5?
Maximum output level: +14.4dBu
Dynamic range: 109dB (A-weighted)
Power @ 33ohm @1%THD 271mW @-78dB THD
THD+N @ 1kHz -103dB (A-Weighted)

Includes
- AudioFuse 16Rig unit
- Power supply
- 2x USB cable

System Requirements
Windows
- Win 10+ PC: 4 GB RAM; Intel i5 CPU or faster
- 1GB free hard disk space
- OpenGL 2.0 compatible GPU

Apple
- 10.13+: 4 GB RAM; Intel i5 CPU or faster
- 1GB free hard disk space
- OpenGL 2.0 compatible GPU
