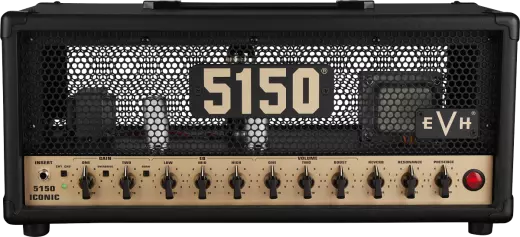

EVH - 5150 Iconic Series 15W EL34 Head - Black

The EVH® 5150® Iconic® Series satisfies the needs of gigging and recording guitarists craving that powerful EVH tube tone, but at a more affordable price. Evolving from the revered EVH 5150III® amplifiers, the Iconic Series delivers the signature sound and growling gain that Eddie Van Halen made famous throughout his groundbreaking career.

Designed by renowned amp engineer, James Brown, the 5150® Iconic® Series 15-watt Head is powered by one EL34 power tube and voiced by a complex, multi-stage hybrid preamp section anchored by a duet of ECC83 tubes providing all the fire power the modern guitarist needs.

Punching above its weight, this head features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from clean tones to increased gain, while the Red channel's burn button adds fiery crunch that's ideal for blistering leads. Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The Boost control allows you to add another 10Db of foot-switchable volume to your tone - perfect for ensuring your solos cut through the mix.The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb to add the perfect amount of bounce and decay for any room.

Other features include a two-button footswitch, effects loop, dual parallel speaker output jacks, 1/4 power switch to reduce wattage - allowing you to crank the amp and still preserve tone but without destroying your neighbor's solitude, and a speaker-emulated DI XLR with power amp mute for accurate all-tube EVH tone for recording direct or using through any PA system. Sporting sophisticated and distinctive EVH style, the 5150 Iconic Series 15-watt Head is wrapped in Black textured vinyl with a brushed gold anodized aluminum front panel and black steel grille featuring gold and black 5150 and EVH logo badges. This This tube head is finished off with a brushed gold anodized aluminum control panel, vintage-style chicken-head knobs and molded black plastic top handle.

Specifications

General
Series: Iconic®
Colour: Black
Amplifier Type: Tube
Country of Origin: ID

Electronics
Control Panel: Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Shared Low, Mid, High EQ; Channel 1/Channel 2 Volumes; Global Master Boost; Global Reverb, Resonance and Presence
Inputs: One - 1/4"
Auxiliary Input: 1/8 in (3.5 mm) Stereo
Headphone Jack: 1/8" Stereo speaker emulated headphone output
Line Out: One - (1/8" Stereo)
Channels: Two - Clean/Overdrive and Lead/Burn
Effects: Reverb
Effects Loop: 1/4" (Send/Return)
Connection Type: 1/4"
Voltage: 120V
Wattage: 15 Watts

Hardware
Control Knobs: Black Chicken-head style pointer
Amplifier Covering: Black textured vinyl
Cabinet Material: MDF
Grille Cloth: n/a
Handle: Molded Plastic Strap with black powder coated caps
Amplifier Jewel: Red LED
Speaker Jack: Two - 1/4" Parallel
Front Panel: Gold anodized

Speakers
Total Impedance: 4, 8, or 16 ohms

Tubes
Power Tubes: 1 X EL34
Preamp Tubes: 2 x ECC83S

Misc
Included Accessories: 2-Button Footswitch, IEC Power Cable, Owner's Manual
