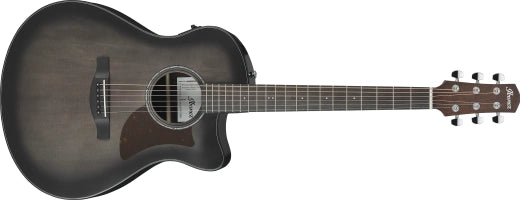

Ibanez - Advanced Auditorium with Advanced Access Cutaway Acoustic/Electric Guitar - Transparent Charcoal Burst

Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this bass.

Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

Macassar Ebony back and sides
Macassar Ebony back and sides imbue this guitar with an exotic appearance. Macassar Ebony features full-bodied, deep lows and sparkling treble tones.

Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

Ibanez AEQ-TP2 preamp w/Onboard tuner
The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument's upper bout.

Purpleheart bridge
The Purpleheart bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

X-M Bracing
After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.

Functional Tapered Headstock
The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect

Advanced Access Cutaway
Its deep straight cutaway (from 18th fret) and shaved side enable amazing high fret access.

Specifications
Neck Type: Low Oval Grip
Neck Joint: Screw jointing
Neck Joint Position: 14th fret joint
Neck Material: Okoume
Neck Finish: Satin Polyurethane
Neck thickness @ 1st fret (mm): 21
Neck thickness @ 7th fret (mm): 22
Scale (in): 25
Nut width (mm): 634
Number of frets: 20
Fretboard Material: Purpleheart
Fretboard Radius (mm): 400
Inlay: White dot
Body Shape: Advanced Auditorium with Advanced Access Cutway
Body Top Material: Solid Sitka Spruce
Body Material: Macassar Ebony
Body Back Material: Macassar Ebony
Body Finish: Satin Polyurethane
Bridge: Purpleheart
String Spacing (mm): 11
Nut: Plastic
Machine Head: Chrome Die-cast tuners (18:1 gear ratio)
Other Pickup: Ibanez T-bar Undersaddle
Preamp: Ibanez AEQ-TP2 preamp w/Onboard tuner
Controls: 1 Volume, Bass, Treble
Other Switches: Tuner on/off switch
String Gauges: .012/.016/.024/.032/.042/.053
Factory Tuning: 1E,2B,3G,4D,5A,6E
