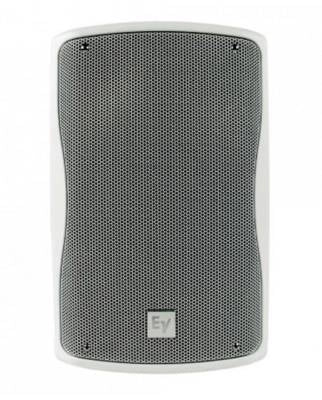

Electro-Voice - ZX1-90 200W 8 Two-Way Composite Speaker - White
Electro-Voice - ZX1-90 200W 8 Two-Way Composite Speaker - White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The Electro-Voice ZX1 is the new standard of no compromise audio performance and versatility for compact sound reinforcement.
The high-tech enclosure uses injection-molded high-impact polypropylene to make the ZX1 extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small loudspeakers and enables exceptional low frequency response without vent noise.
The ZX1's long excursion, high output 8" woofer with a weatherized treated cone delivers smooth low frequency performance with exceptional reliability. A sophisticated crossover network integrates it with the DH2005, a 1.25 voice coil titanium diaphragm true compression driver for maximum output with extended frequency response. Full-bandwidth overload protection is provided for reliable, long term operation without audible effect.
The horn features 90 x 50 degree coverage with the important added benefit of rotation, allowing the ZX1 to be oriented either horizontally or vertically for the ultimate in coverage flexibility.
The ZX1's molded polymer enclosure is inherently water resistant. The enclosure features an integrated pole mount, a pocket handle, and a wedge-angle design allowing for use as a stage monitor.
Features:
• Smooth, wide frequency response
• Ideal for mains, fills, or monitors
• Velocity-compensated port for exceptional LF
• Long-excursion weather-treated EV8L woofer
• 1.25-inch DH2005 titanium HF compression driver
• Rotatable 90 deg x 50 deg horn for flexible coverage
• Passive crossover with full-band overload protection
• High sensitivity, 123 dB maximum SPL
• Power handling: 200 W continuous, 800 W peak
• High-impact polypropylene enclosure
• Compact monitor-friendly wedge shape
• Integrated pole mount adapter and pocket handle
• Metric mounting inserts (4)
• Available in black or white
Specs:
Active or Passive: Passive
Frequency Response (-3 dB): 60 Hz - 20 kHz
Power Capacity: 200W continuous; 400W program; 800W peak
Maximum Sound Pressure Level (SPL): 123 dB (90 deg)
Nominal Sensitivity: 94 dB (90 deg)
Impedance: 8 Ohms
Crossover: 1.7 kHz
Low Frequency Driver: 8"
High Frequency Driver: 1"
Grill Material: Polyester Powder Coated, 18GA Galvanized Steel
Input Connections: 2 x Parallel Neutrik NL4
Dimensions: 18 x 11.1 x 10.4" (457 x 282 x 264 mm)
Weight: 18.5 lbs (8.4 kg)
