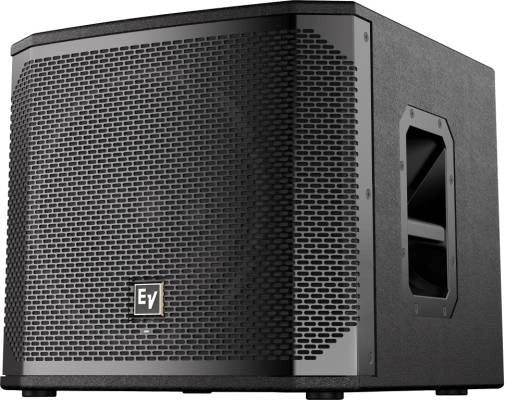

Electro-Voice - ELX200-12SP 12-Inch Powered Subwoofer
Electro-Voice - ELX200-12SP 12-Inch Powered Subwoofer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall
settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.
Features:
EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
High-efficiency 1200 W Class-D power amplifier delivers up to 129 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV.
Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
Specifications:
Connector Type: (2) XLR/TRS combo jacks and (2) XLR link outputs
Depth: 457mm (17.99")
Enclosure Material: 15 mm plywood with EVCoat
Family: ELX200
Frequency Range (-10 dB): 41 Hz 165 Hz
Frequency Response (-3 dB): 49 Hz 135Hz
Grill: 18 AWG steel with powdercoat
Height: 397mm (15.63")
LF Transducer: EVS-12L 300 mm (12 in)
Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120Hz, 150 Hz
Max. SPL/1m (calc): 129dB
Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
Power Rating: 1200W
Powered or Passive: Powered
Shipping Weight: 22.3kg (49.16 lbs)
Speaker Type: Subwoofer
Weight Net: 19.1kg (42.11 lbs)
Width: 445mm: (17.52")
Woofer Size: 12 inch
*Sold individually.
